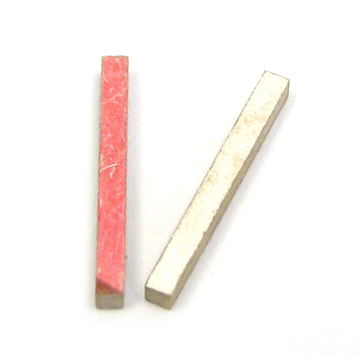

The material performance of piezoelectric ceramic
The material performance of piezoelectric ceramic
MORE>>

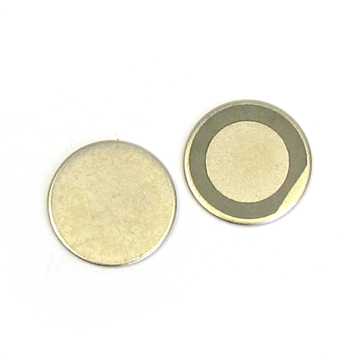

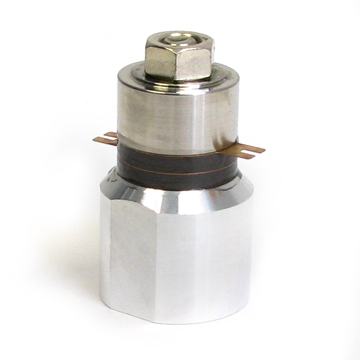

Ultrasonic circular plate series is used for ultrasonic cleaning transducer,ultrasonic
welding transducer ultrasonic polishing machine.
Application：
1. River、lake、depth
2. shoal detect
Features:
1) Miniature and current echo sounder
2) Minimum and the most inexpensive of the rungs of ship depth finder
transducer
3) Used for install inside and outside of miniature ship
4) Used chiefly for hydro location and sounded bottom in seas, rivers and
lakes
5) Excellent and with high ship speed, the speed is 63MPH
6) Delicate plastic skin, prevent the noise of rapid flow
Dimension:
Diameter: 46mm
Height: 37mm
Performance pedigree:
Components material/diameter(mm):PZT/27
Components structure formation :〇
Width of wave velocity(@-3db):13°
Q(fr/Δf @-3dB):13
RMS(W):250
Voltage response, sent out and incept(dB):155/-181
Shunt impedance(in water): resistance Rp(Ω) 1.2k
C0(nf):900
Canning material: plastic.
Acoustical window material: plastic.
MORE>>

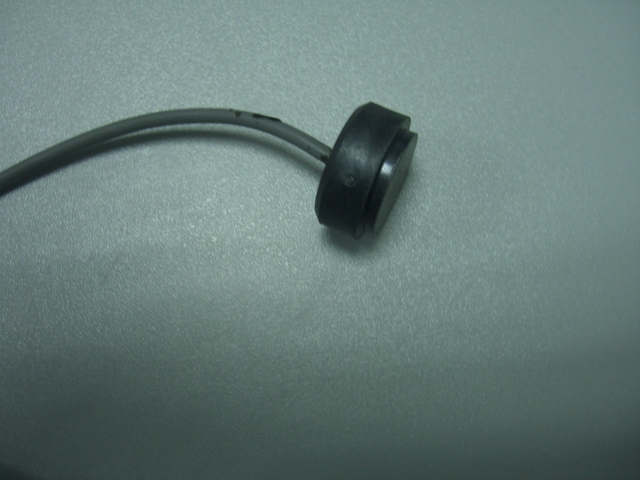

Specifications:
Model | 1.0MHz |
Frequency（kHz） | 1.0MHZ±5% |
Bandwidth | 0.2MHz |
General sensitivity 0 dB=3 Vp-p；Period：8；Distance：7cm | -30dB min |
Beam width (-3dB full angle) | 6° |
Static capacitance | 1200PF±20% |
Min. parallel resistance | 250Ω±30% |
Max. driving Voltage(2% duty cycle tone burst) | ＜300V |
Operating temperature | -20～100℃ |
Max. driving pressure | 1.6MPa |
Housing material | PPS |
Protection/waterproof level | IP68 |
Wire length | 65cm |
